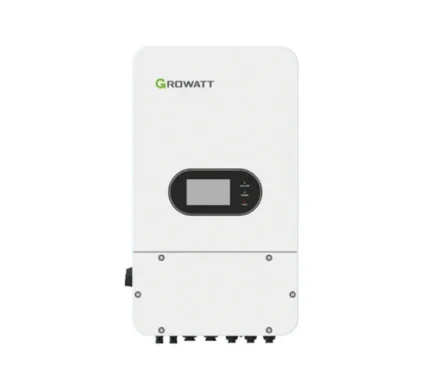

Growatt 10kW Three Phase Hybrid Inverter
₨550,000.00

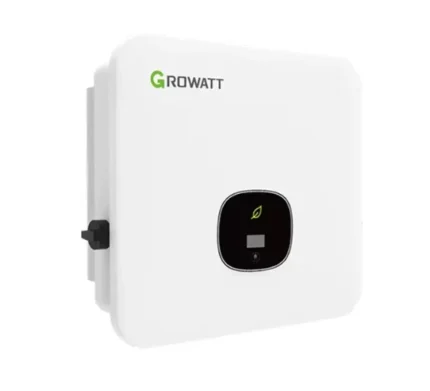

Huawei 5kW Sun2000-M1 OnGrid Inverter
₨185,000.00

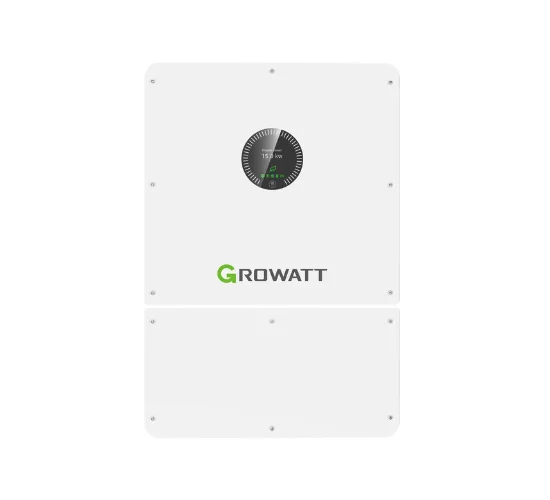

Growatt 15kW Three Phase Hybrid Inverter
₨655,000.00
The Growatt 15kW Three-Phase Hybrid Inverter is a high-capacity solar and battery integration solution for commercial, industrial, and large residential projects. With up to 98.4% efficiency, dual MPPTs, high-voltage battery compatibility, and IP65 protection, it delivers reliable power, seamless backup, and smart energy management for Pakistan’s grid and off-grid needs.
Specifications
- Brand: Growatt
- Model: SPH15000TL3-BH-UP (or equivalent series)
- Inverter Type: Hybrid (On-Grid + Battery Storage)
- Rated AC Output Power: 15,000W (Three-Phase)
- Max DC Input Voltage: 1000V
- Start-Up Voltage: 180V
- MPPT Inputs: 2 Independent MPPTs
- Max PV Input Current per MPPT: 40A
- Max Efficiency: 97.60%
- European Efficiency: 97.00%
- Battery Compatibility: High Voltage Lithium-ion (150V – 800V) / Lead-Acid
- Max Battery Charge/Discharge Power: 290A
- AC Output Voltage: 400V, 3-Phase
- Frequency: 50Hz / 60Hz
- Communication Interfaces: RS485 / CAN / USB / WiFi (Optional LAN/4G Dongle)
- Cooling Method: Smart Air Cooling
- Protection Rating: IP66 (Outdoor & Indoor Use)
- Operating Temperature: –30°C … +60°C (> 45°C, derating)
- Dimensions: 475/698/240mm
- Weight: 38kg
- Warranty: 5 Years (Extendable to 10 Years)
